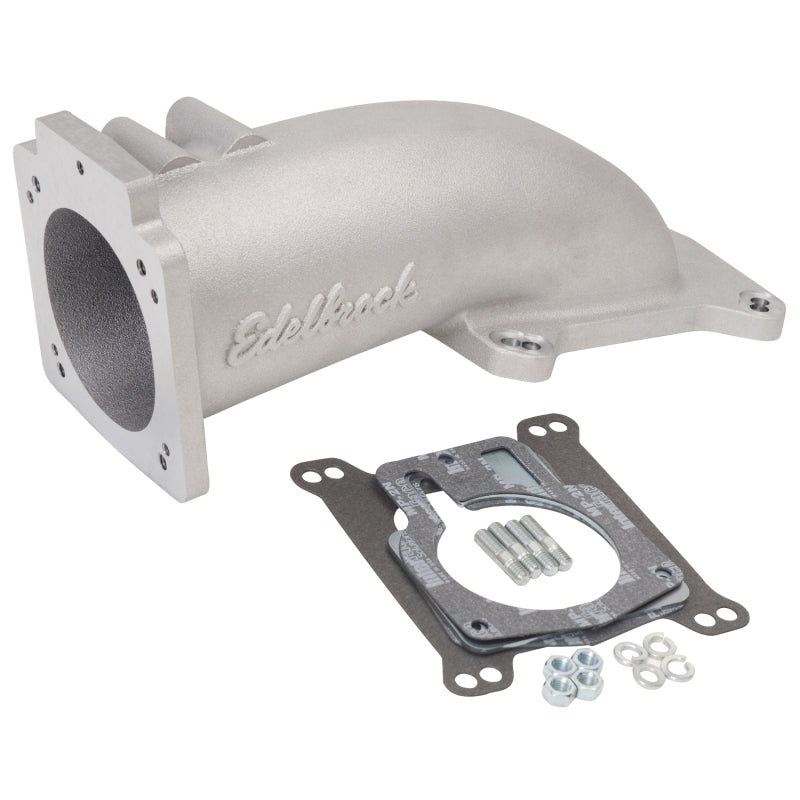

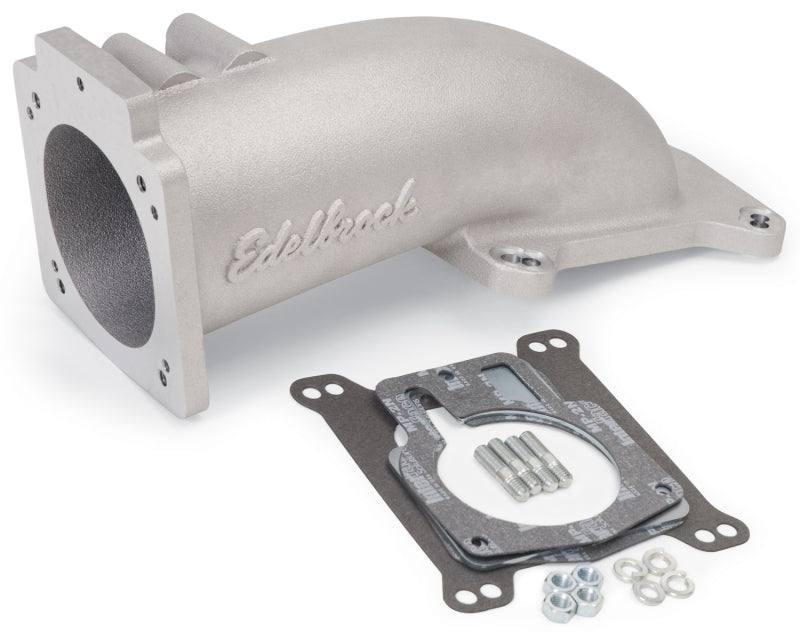

Edelbrock Ultra Low Profile Intake Elbow 90mm Throttle Body to Square-Bore Flange As-Cast Finish

No review
$216.99
108.5 ENTRIES
Photo - Primary
Photo - Primary
Photo - Primary
Photo - Primary
User 1
User 4
User 3
Click to zoom in
Load image into Gallery viewer, Photo - Primary
Load image into Gallery viewer, Photo - Primary
Load image into Gallery viewer, Photo - Primary
Load image into Gallery viewer, Photo - Primary
Load image into Gallery viewer, User 1
Load image into Gallery viewer, User 4
Load image into Gallery viewer, User 3

Have Questions?

Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Financing Available

    Buy Now, Pay Later

  • Nationwide Delivery

    We are nation wide!

Edelbrock Ultra Low Profile Intake Elbow 90mm Throttle Body to Square-Bore Flange As-Cast Finish

No review
$216.99
108.5 ENTRIES

EDE3847
In stock
Throttle Bodies
Edelbrock Ultra Low Profile Intake Elbow 90mm Throttle Body to Square-Bore Flange Black Finish
Edelbrock Ultra Low Profile Intake Elbow 90mm Throttle Body to Square-Bore Flange Black Finish
$249.99
Edelbrock 3881/3841 Gasket Set
Edelbrock 3881/3841 Gasket Set
$31.99
Description
The Edelbrock 3847 Elbow can be used in square bore (4150 style) manifold applications. It can be mounted forward, backward, or sideways on our Victor EFI square bore (4150) style manifolds, when fuel rail or waterneck clearance permits. Because of its low profile, it will not fit Chevy manifolds in the forward mount configuration as it will hit the water neck. It accommodates LS1 80 mm or Edelbrock PN 3864 LS2 (90mm 4-bolt) or Ford style 75mm throttle bodies. The 3847 adaptor features: 1) Bolt pattern fits LS1, LS2 and Ford 5.0l based throttle bodies. 2) Adapts to standard (4150 style) square bore manifolds.3) Fits manifold either in a forwards, backward, or sideways configuration (user determines clearance). 4) The throttle bore center sits 9.00" forward and only .56" up from the manifold 4150 flange. The throttle body flange points down on a 12 Deg angle.5) Internal divider optimizes flow quantity and distribution into the manifold.6) The PN 3848 Low Profile elbow will also be available. It's throttle body bore is 7.00" forward and 2.00" above the manifold flange.
